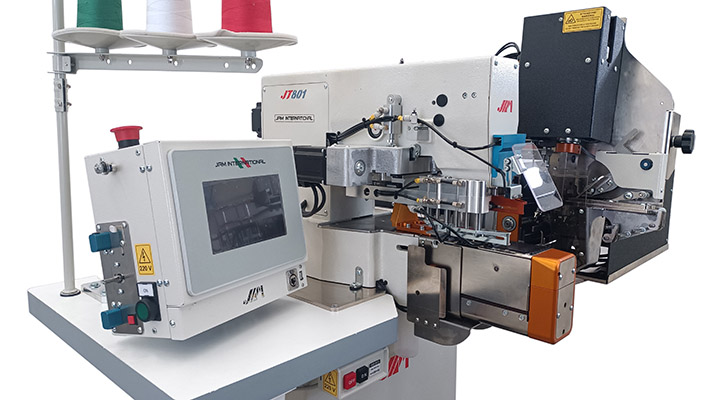

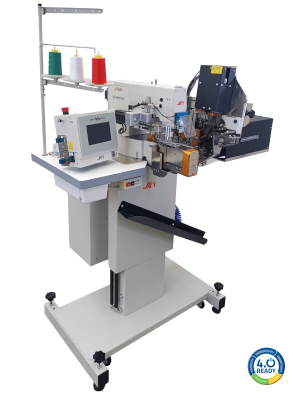

The JT801M sewing unit is an automatic machine for loop setting.

The machine is equipped with:
• JAM INTERNATIONAL double needle bar sewing head with servo direct motor, double capacity hook and thread trimmer
• X-Y axes movement driven by stepper motors
• Loop catcher clamp and loader device driven by brushless motors
• Electronic self-learning system managed through the touch screen for detecting the junction or the lack of the loop

New and more performing M SERIES electronic control

Software updates via USB memory

The intuitive color touch screen panel allows, moreover, to:

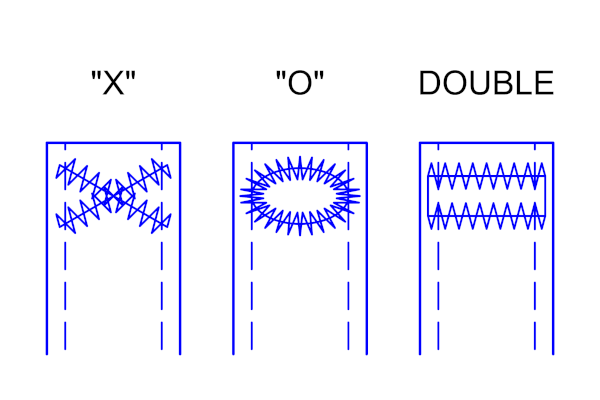

• Choose from 3 preset standard bartack shapes (“X”, “O” and “double” shape);
• Program new bartacks starting from the standard ones and customizing the size and number of stitches;
• Set the start of the bartack (left, center, right);
• Choose the number of straight lines under the bartack (1, 2 or 3) and the corresponding stitch length;
• Make (on request) customized bartacks, different from the standard ones.

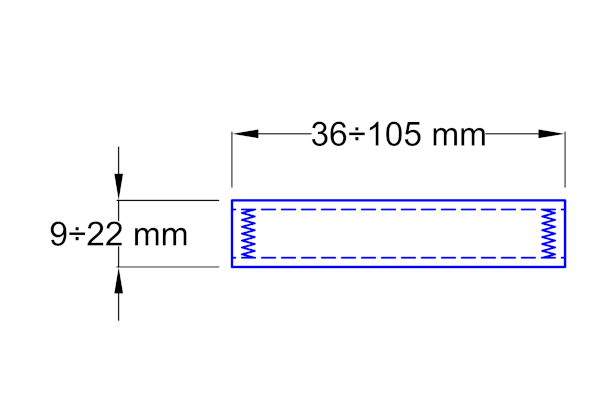

Length and width of the loop adjustable through simple mechanical adjustments and settings via touch screen

Optional devices

• “V” cutting device
• Device for sportswear and classic belt loop
• PC Windows software for creating special sewing

Specifications
